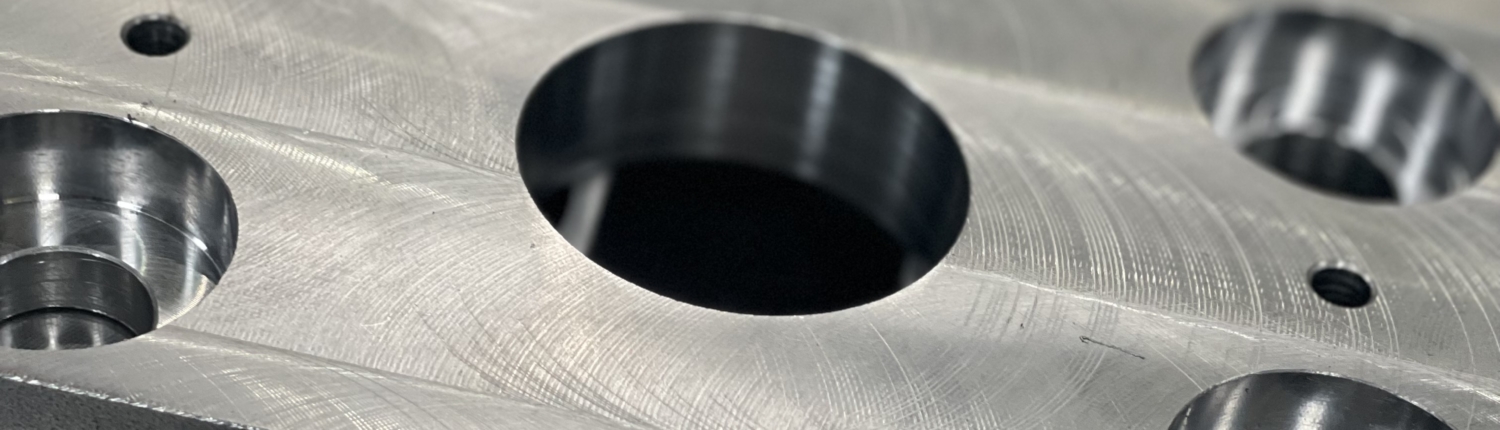

Die Zerspanung ist ein Prozess in der Fertigungstechnik, bei dem Material von einem Werkstück abgetragen wird, um die gewünschte Form, Oberfläche oder Abmessungen zu erreichen. Dieser Prozess wird typischerweise durch Schneiden, Schleifen oder ähnliche Methoden durchgeführt.

Präzise und flexibel – Die VESTA-1300B gehört zu den führenden Vertikal-Bearbeitungszentren ihrer Klasse und punktet mit fortschrittlichster Technologie. Höchste Qualität für unsere Kunden!

Technische Daten

  • Verfahrwege (X/Y/Z) 1.300/670/500mm
  • Größe des Werkzeugspeichers: 30 Werkzeuge
  • Steuerung Heidenhain

Die Kernloch- und Bohrdurchmesser (ohne Gewähr)

Metrische ISO-Regelgewinde DIN 336
Nenn-      Stei-          Kern-         Kerndurchmesser
Ø             gung         loch Ø        Muttergewinde
M               P                                min.     max.

mm          mm           mm              mm        mm

M  1         0,25           0,75             0,729       0,779

M  2         0,40           1,60             1,567       1,679

M  3         0,50           2,50             2,459       2,599

M  4         0,70           3,30             3,242       3,422

M  5         0,80           4,20             4,134       4,334

M  6         1,00           5,00             4,917       5,153

M  7         1,00           6,00             5,917       6,153

M  8         1,25           6,80             6,647       6,912

M 10        1,50           8,50             8,376       8,676

M 12        1,75         10,20           10,106     10,441

M 14        2,00         12,00           11,835     12,210

M 16        2,00         14,00           13,835     14,210

M 18        2,50         15,50           15,294     15,744

M 20        2,50         17,50           17,294     17,744

M 22        2,50         19,50           19,294     19,744

M 24        3,00         21,00           20,752     21,252

M 27         3,00        24,00           23,752     24,252

M 30        3,50         26,50           26,211     26,771

M 33        3,50         29,50           29,211     29,771

M 36        4,00         32,00           31,670     32,270

M 39        4,00         35,00           34,670     35,270

M 42        4,50         37,50           37,129     37,799

M 45        4,50         40,50           40,129     40,799

M 48        5,00         43,00           42,587     43,297

M 52        5,00         47,00           46,587     47,287

M 56        5,50         50,50           50,046     50,796

Die Kernloch- und Bohrdurchmesser (ohne Gewähr)

Metrische ISO-Feingewinde DIN 336

Nenn-      Stei-          Kern-             Kerndurchmesser
Ø             gung          loch-              Muttergewinde
M x            P               Ø                 min.         max.
mm          mm            mm               mm          mm

M 2,5  x   0,35           2,15             2,121       2,221
M 3,5  x   0,35           2,65             2,621       2,721
M 3,5  x   0,35           3,15             3,121       3,221
M 4,5  x   0,50           3,50             3,459       3,599
M 4,5  x   0,50           4,00             3,959       4,099
M 5,0  x   0,50           4,50             4,459       4,599
M 5,5  x   0,50           5,00             4,959       5,099
M   6   x   0,75           5,20             5,188       5,378
M   7   x   0,75           6,20             6,188       6,378
M   8   x   0,75           7,20             7,188       7,378
M   8   x   1,00           7,00             6,917       7,153
M   9   x   0,75           8,20             8,188       8,378
M   9   x   1,00           8,00             7,917       8,153
M  10  x   0,75           9,20             9,188       9,378
M  10  x   1,00           9,00             8,917       9,153
M 10   x   1,25           8,80             8,647       8,912
M 11   x   0,75         10,20           10,188     10,378
M 11   x   1,00         10,00             9,917     10,153
M 12   x   1,00         11,00           10,917     11,153
M 12   x   1,25         10,80           10,647    10,912
M 12   x   1,50         10,50           10,376    10,676
M 14   x   1,00         13,00           12,917    13,153
M 14   x   1,25         12,80           12,647    12,912
M 14   x   1,50         12,50           12,376    12,676
M 15   x   1,00         14,00           13,917    14,153
M 15   x   1,50         13,50           13,376    13,676

M 16   x   1,00         15,00           14,197    15,153
M 16   x   1,50         14,50           14,376    14,676
M 17   x   1,00         16,00           15,917    16,153
M 17   x   1,50         15,50           15,376    15,676
M 18   x   1,00         17,00           16,917    17,153
M 18   x   1,50         16,50           16,376    16,676
M 18   x   2,00         16,00           15,835    16,210
M 20   x   1,00         19,00           18,917    19,153
M 20   x   1,50         18,50           18,376    18,676
M 20   x   2,00         18,00           17,835    18,210
M 22   x   1,00         21,00           20,917    21,153
M 22   x   1,50         20,50           20,376    20,676
M 22   x   2,00         20,00           19,835    20,210
M 24   x   1,00         23,00           22,917    23,153
M 24   x   1,50         22,50           22,376    22,676
M 24   x   2,00         22,00           21,835    22,210
M 25   x   1,00         24,00           23,917    24,153
M 25   x   1,50         23,50           23,376    23,676
M 25   x   2,00         23,00           23,835    23,210

M 27   x   1,00         26,00           25,917 26,153
M 27   x   1,50         25,50           25,376 25,676
M 27   x   2,00         25,00           24,835 25,210
M 28   x   1,00         27,00           26,917 27,153
M 28   x   1,50         26,50           26,376 26,676
M 28   x   2,00         26,00           25,853 26,210
M 30   x   1,00         29,00           28,917 29,153
M 30   x   1,50         28,35           26,376 28,676
M 30   x   2,00         28,00           27,835 28,210
M 30   x   3,00         27,00           26,752 27,252
M 32   x   1,50         30,50           30,376 30,676
M 32   x   2,00         30,00           29,835 30,210
M 33   x   1,50         31,50           31,376 31,676
M 33   x   2,00         31,00           30,835 31,210
M 33   x   3,00         30,00           29,752 30,252
M 35   x   1,50         33,50           33,376 33,676
M 36   x   1,50         34,50           34,376 34,676
